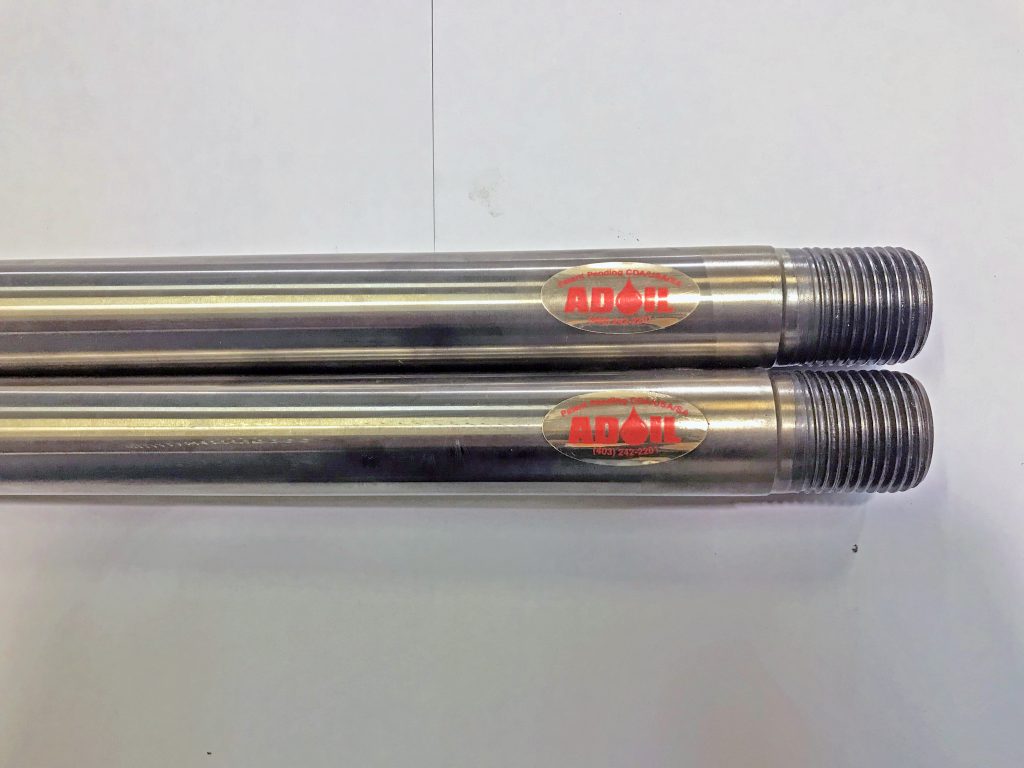

W99 Tungsten Electroplated Polished Rod
W99 Tungsten Electroplated Polished Rod
Developed for the California basin, the W99 Tugsten Electroplated Polished Rod is the hardest and most durable polished rod on the market. This polish rod was designed to resist corrosive wells with highly erosive flour sand. The W99 Rod will eliminate most time consuming seal change-outs, rod replacements, oil seal seepage, and packing blowouts.
Tungsten electroplating results in electrodepositing tungsten ions on and into the alloy, resulting in 100% coverage.
- Double the density of steel
- Highest tensile strength as alloy
- High melting point of 3442 C
W99 vs. Yesterday’s Rods
W99 | Sprayed Rod | N50 | |
|---|---|---|---|
Hardness Value | 886 HV | 480 HV | 320 HV |
Tensile Strength | 136,045 PSI | 115,000 PSI min. | 134,000 PSI |
Yield Strength | 126,328 PSI | 85,000 PSI min. | 109,000 PSI |
Elongation | 13% | 10% min. | 20% |
Reduction | 60% | 20% min. | 50% |
Coating | Tungsten | Various Compounds | API not rec. |
Coating Process | Electroplated | Sprayed | Non-API |
Independent laboratory analysis of our W99 Rods are available upon request.
Lengths
-
22 foot rod
-
26 foot rod
-
30 foot rod
-
Diameters
-
1 1/2 inches
-
1 1/4 inches
-
-

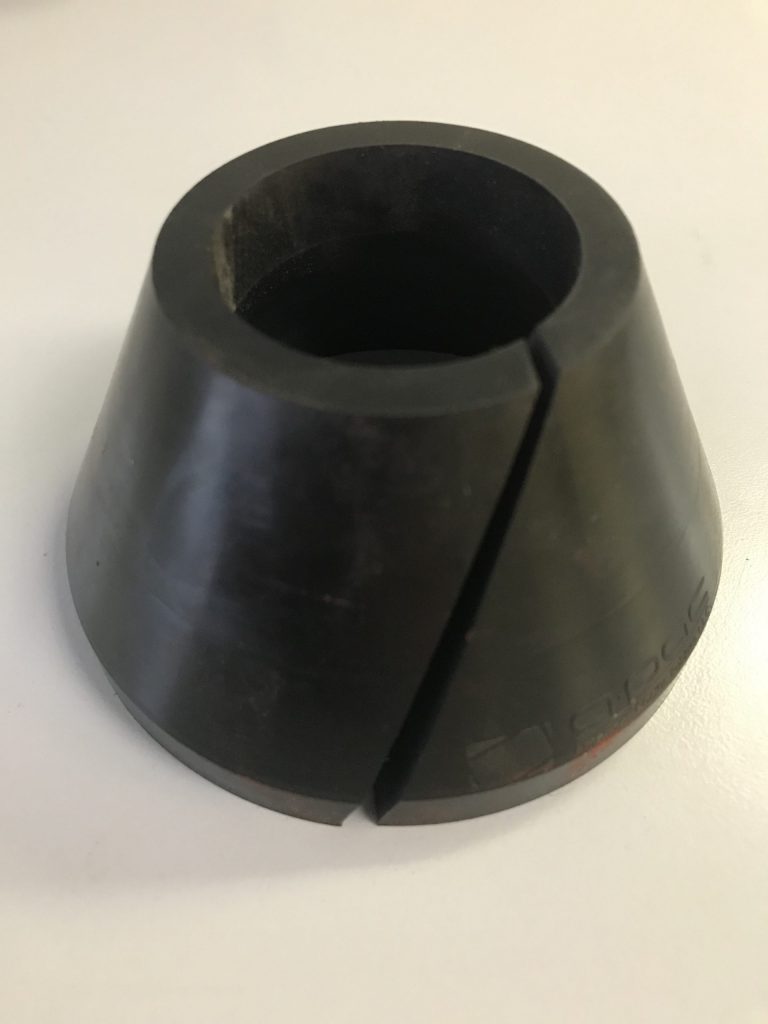

Our 2K10 Stuffing Box Cone Seals are superior to existing conventional cone seals on the market. A diagonal cut allows a better seal with less leakage. Square edges also provide a more effective seal.
Protecting the environment, your reputation, and your bottom line.
